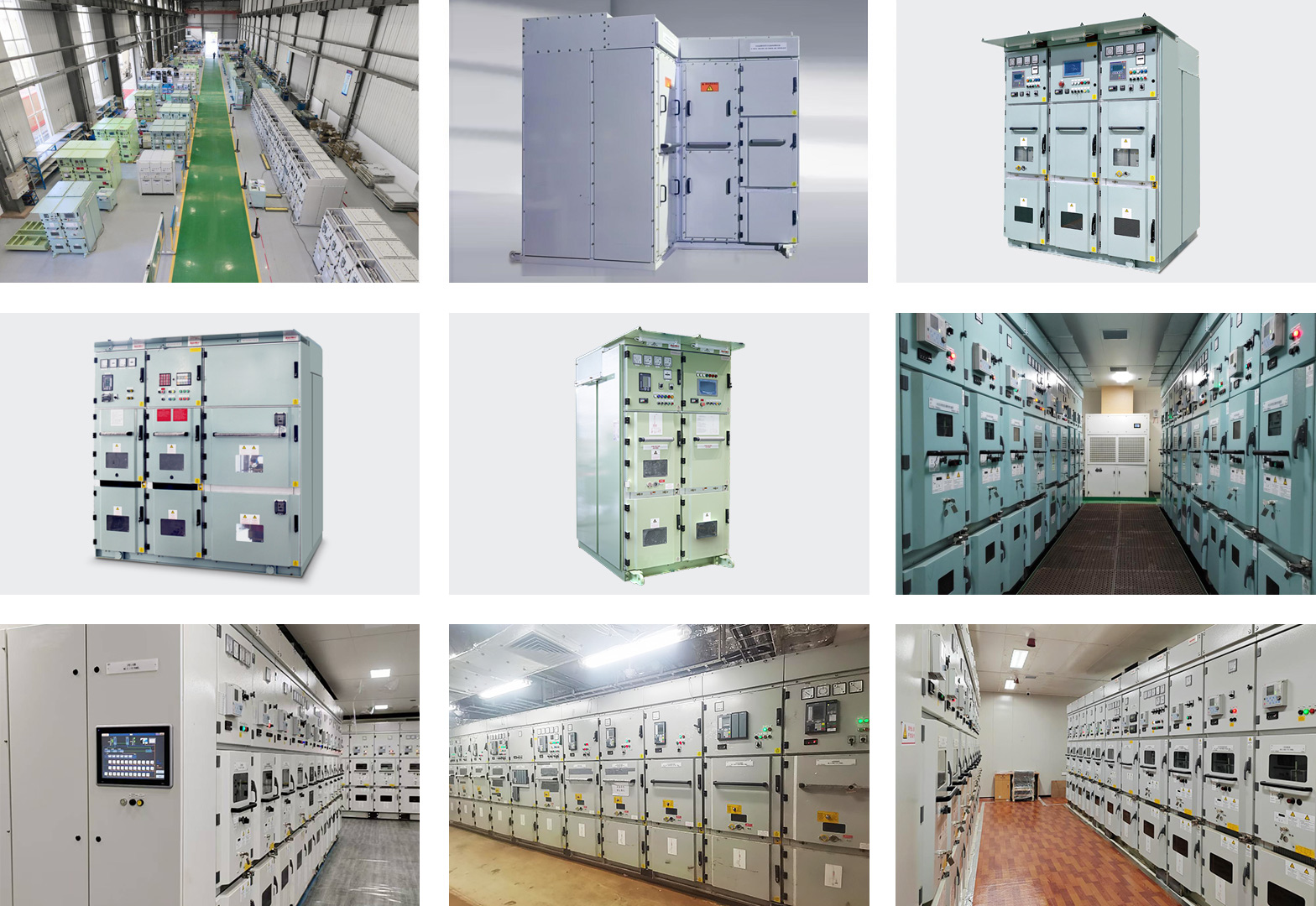

High Voltage Switchboard
SaierNico High Voltage Switchboard, an indoor AC metal enclosed switchgear, constitutes a comprehensive power distribution device applied to 3~12kV three-phase AC 50/60Hz system.
Perfectly adapted for marine and offshore conditions, it includes a comprehensive range of standardized high-voltage units, for performing the following functions:
▪ HV Main Switchboard
▪ HV Distribution Switchboard
▪ HV Motor Control
▪ HV Shore Connection
▪ HV Bow Thruster Starter
▪ Etc.
The basis for the panel is the incoming/outgoing feeder panel with vacuum circuit- breaker or vacuum contactor using insertion technology. It is divided into:
A. Circuit breaker compartment.
B. Busbar compartment.
C. Cable compartment.
D. Low voltage compartment.
E. Additional low voltage compartment.
F. Arc chamber. Self-absorbing type.
Apart from this, there are variants for all operating needs.
SaierNico High Voltage Switchboard has been fully type-tested in compliance with international standards and further validated according to the regulations stipulated by the main classification societies, ensuring its suitability for use in marine installations.
